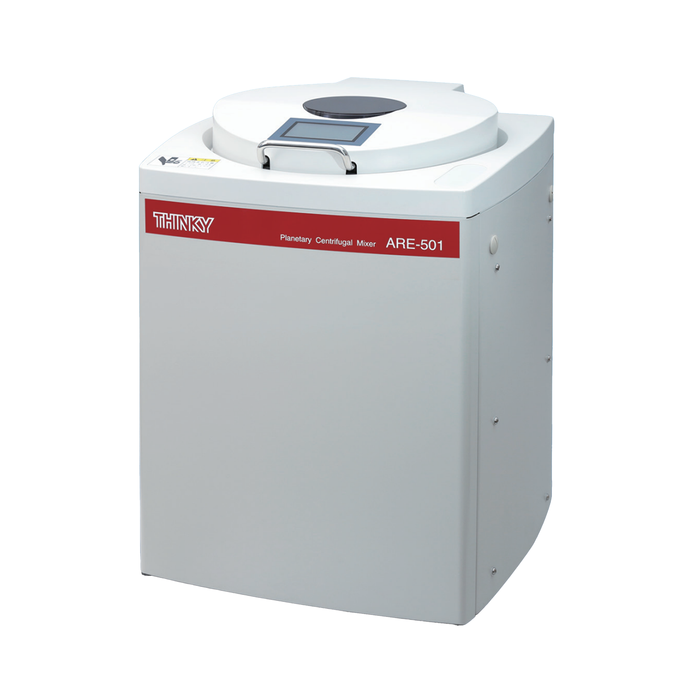

THINKY ARE-501 Planetary Centrifugal Mixer (Non Vacuum)

Maximum Capacity: 1100 g

The THINKY ARE-501 is a revolutionary non-vacuum planetary centrifugal mixer with a maximum revolution speed 150% higher than previous THINKY models. In addition, its optimized revolution ratio makes it easy to control and repeat formulas.

Highlights:

• Accommodates a wide range of adapters, extending the variety of usable containers (syringes, barrels, and disposable containers)

• Cold-insulated, heat-resistant adapter supports numerous materials

• High-durability drive system

• Mixes and deaerates up to 500 mL/1.1 kg of material simultaneously

• Memory and step-operation functions for controlling mixing conditions

THINKY ARE-501 Includes:

• Instruction manual (1)

• AC cable (including 3P adapter) (1)

• THINKY HDPE Container (650 mL) (SKU: E1131) (2)

• THINKY HDPE Container (550 mL) (2)

• THINKY HDPE Container (300 mL) (SKU: E1130) (2)

• THINKY Adapter for 300 mL HDPE Container (1) (including 3 types of o-rings (1 each)

Specifications:

• Maximum Capacity: 1100 g

• Power Supply:

• Voltage: Single-phase AC 100 V ± 10 %, 50/60 Hz

• Power consumption: Approximately 50 VA (standby) Max 1500 VA (operation)

• Revolution/Rotation Speed (Mixing Mode):

• Revolution: 400 to 1500 RPM (adjustable)

• Rotation: 867 RPM (adjustable)

• Standard Container: THINKY HDPE Container (650 mL)

• Unit Dimensions: 686 mm x 500 mm x 500 mm (H x W x D)

• Unit Weight: Approximately 95 kg
