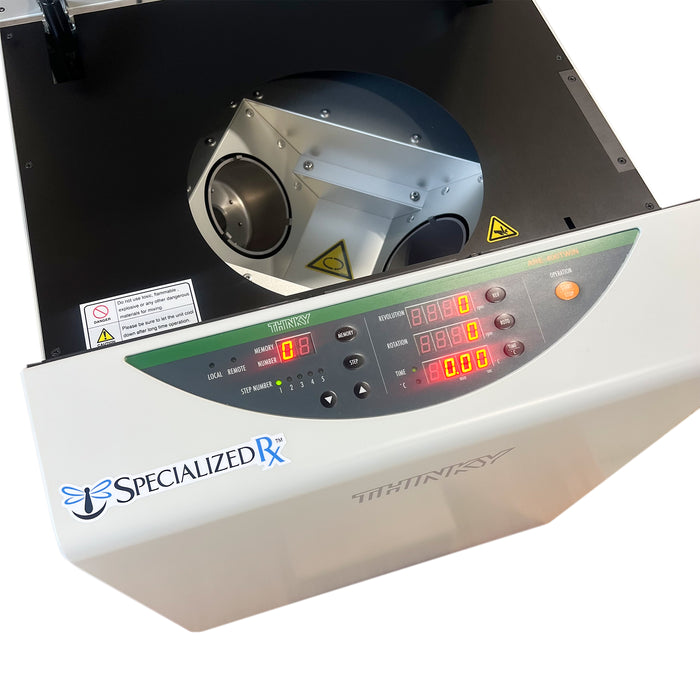

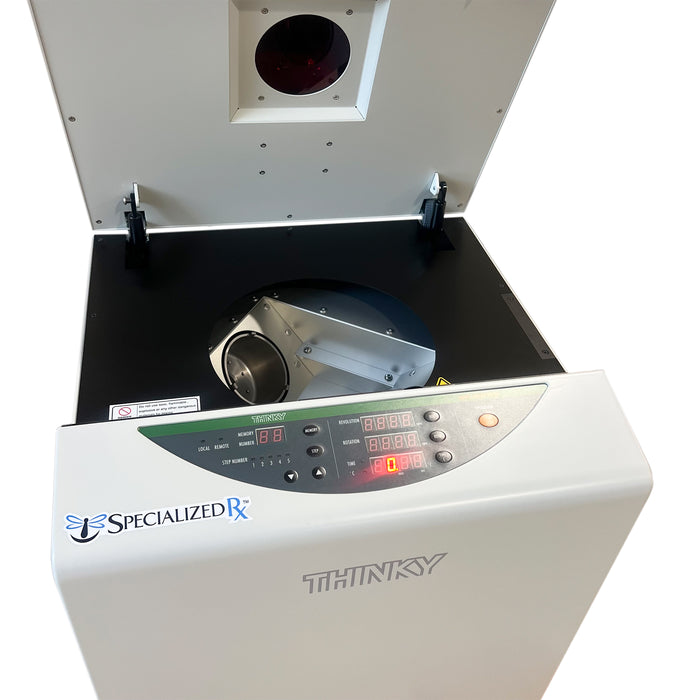

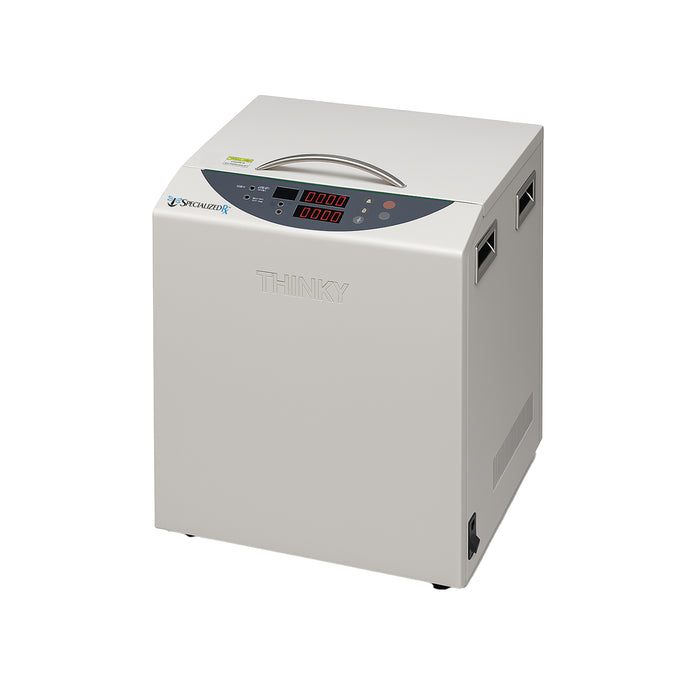

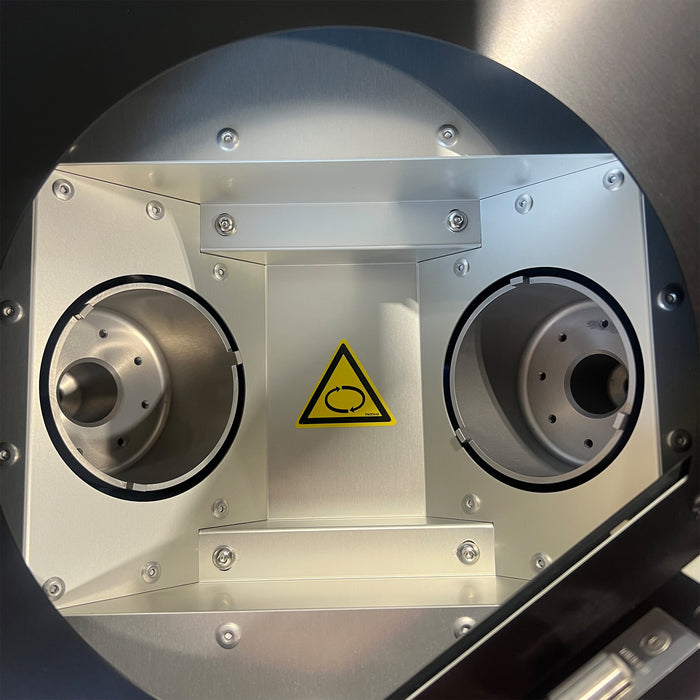

THINKY ARE-400TWIN Planetary Centrifugal Mixer (Non-Vacuum)

Maximum Capacity: 400 g x 2

The THINKY ARE-400TWIN is a revolutionary non-vacuum planetary centrifugal mixer with an adjustable RPM and maximum revolution acceleration of 400 G. It features a dual-chamber design that is capable of mixing and deaerating up to 500 mL/800 g (400 g x 2) of material. Its non-contact sensor unit can monitor and regulate product temperatures during the mixing process, allowing for optimal control and repeatability of formulas. Formula settings, mixing rotations, and product temperatures can be displayed through an external PC connection (USB Type B).

Highlights:

• Can remote control through external PC connection (optional RS485 terminal)

• Capable of mixing high-viscosity material up to 4,000 Pa·s

• Effective in setting recipes for heat-sensitive formulas

• Non-contact sensor for detecting the temperature of materials being mixed in real time

• Rotation and revolution independent variable mechanism mounted

THINKY ARE-400TWIN Includes:

• Instruction manual (1)

• AC cable (including 3P adapter) (1)

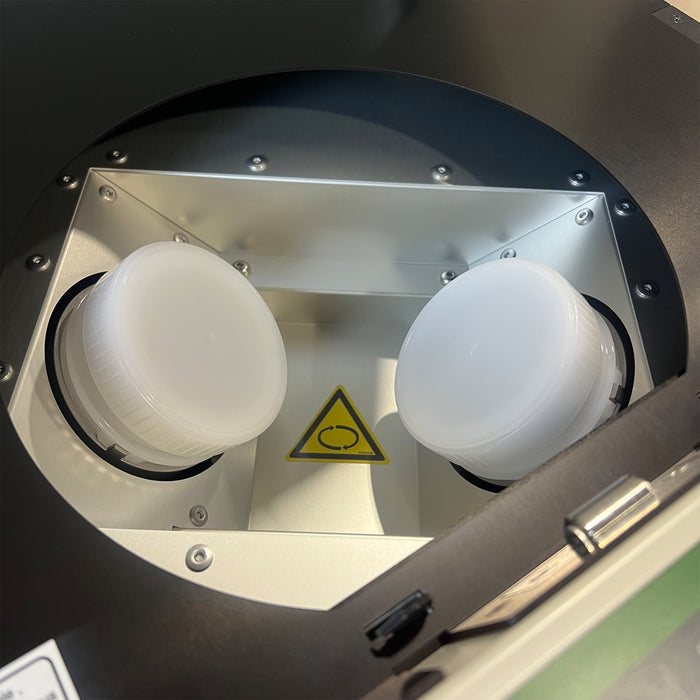

• THINKY HDPE Container (300 mL) (SKU: E1130) (6)

• PC management software

• USB type B cable (1)

• L-shaped wrench (for M6) (1)

• Key for unlocking unit during power failure (1)

Specifications:

• Maximum Capacity: 400 g x 2

• Power Supply:

• Voltage: Single-phase AC 100 V ± 10 %, 50/60 Hz

• Power consumption: Approximately 50 VA (standby) Max 1400 VA (operation)

• Revolution/Rotation Speed (Mixing Mode):

• Revolution: 200 to 1600 RPM (adjustable)

• Rotation: 200 to 1600 RPM (adjustable)

• Standard Container: THINKY HDPE Container (300 mL)

• Unit Dimensions: 560 mm x 460 mm x 480 mm (H x W x D)

• Unit Weight: Approximately 70 kg

Also available as CE-certified model.  Please inquire for further certification requirements.
