Feton CP60 Compact Filler

Original price $599.88 - Original price $599.88
Original price
$599.88
$599.88 - $599.88
Current price $599.88
SKU E1367-00

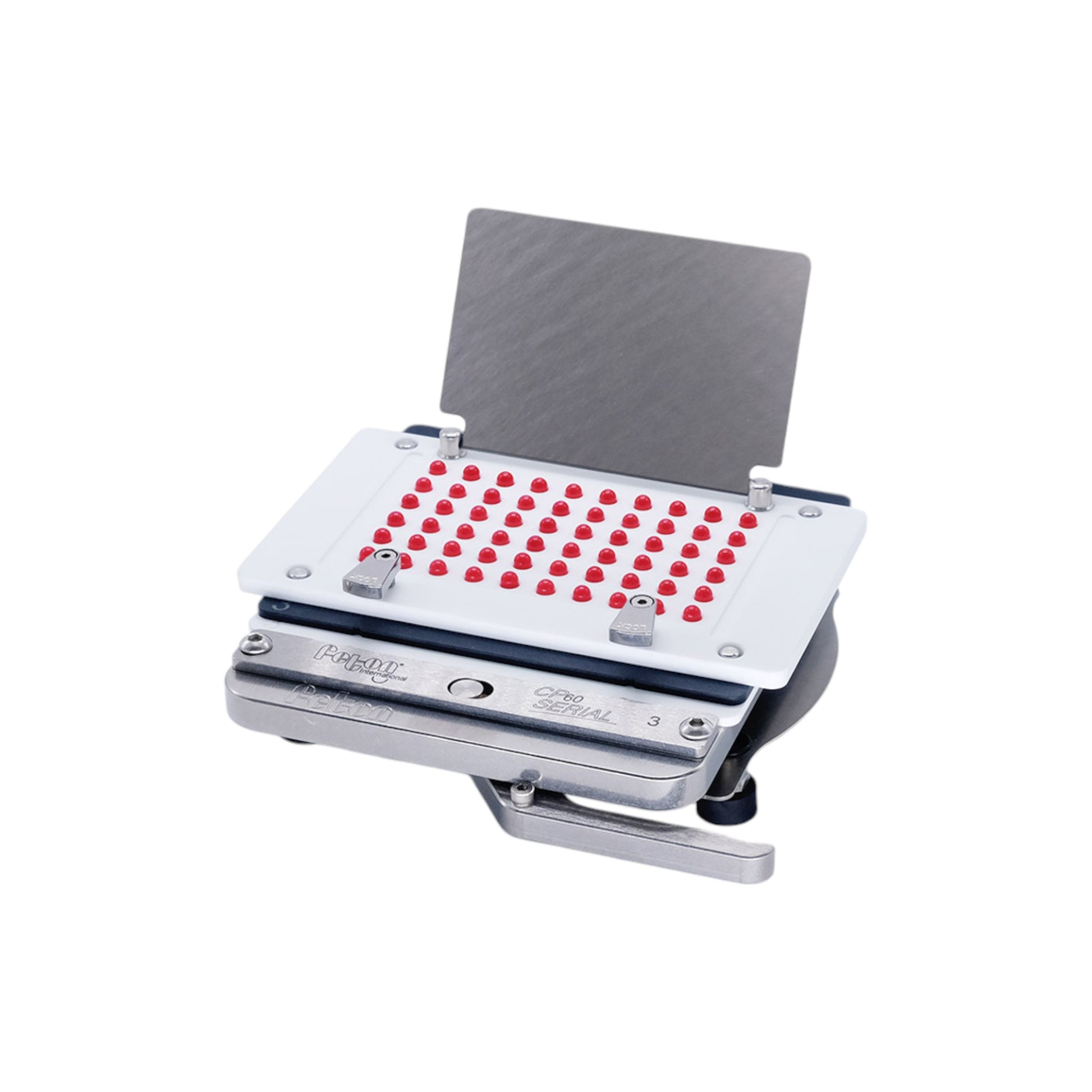

The Feton CP60 Compact Filler fills 60 capsules at a time, making it the best choice for small-scale production. Each device accommodates one size of capsules.

Component(s):

  • CP60 Compact Filler (1)

Capsule Size Options:

  • Size 000
  • Size 00
  • Size 0
  • Size 1
  • Size 2
  • Size 3
  • Size 4

Dimensions and Weight:

  • Dimensions
    • Length: 182mm
    • Width: 181 mm
    • Height: 69 mm
  • Weight
    • 1.7 Kg

Features:

  • No adjustment necessary.
  • PMMA plates.
  • Stainless steel frame and small parts.
  • Fill Capsule sizes 0, 1, 2, 3 and 4.
  • 60 Capsules capacity.
  • Our capsule filler is easy to clean.

Use Instructions:

  1. Prepare your material. Install the plates in this order: Bottom Plate, Filling Plate, Top Plate. Be careful to orient the Bottom and Filling plates with the notches forward.
  2. Load the Capsules. You can place them by hand or with the Feton Loader 60
  3. Pull the Lever to lock the Capsules’ bodies.
  4. Pull the Top Plate upwards, starting from the back side for easier separation. Push with your thumbs on the Filling Plate in the back corners and pull on the Top Plate with your fingers.
  5. Release the Lever. If needed, push on the capsules' bodies so that they are flush with the Filling Plate. Fill the Capsules. Use a tamper if needed.
  6. Place the Top Plate. Pull the Base Plate to push the Capsules’ bodies into the Capsules’ heads. The capsules are now “pre-closed”.
  7. Take the Top Plate and turn it upside down on your table. If you have a Serial Closer, use it to close the Capsules in one smooth motion. If you do not have a Serial Closer, close the capsules by hand.
  8. Your Capsules are now ready.

Cleaning Instructions:

It is important to clean the parts in contact with the capsules or the powder thoroughly between each use to avoid contamination. Washing can be done by hand, in a dishwasher or in an autoclave. If done by hand, use warm water and soap. Use a maximum temperature of 110°C / 230°F for all the metallic parts. Use a maximum temperature of 40°C / 104°F for all the plastic parts. If you have difficulties washing the inside of holes on the plates, use the Feton Cleaning Brush.

REF. CP60

Depending on availability, please allow up to 3 weeks from order date for shipping.  Contact your SpecializedRx Representative for shipping status.
