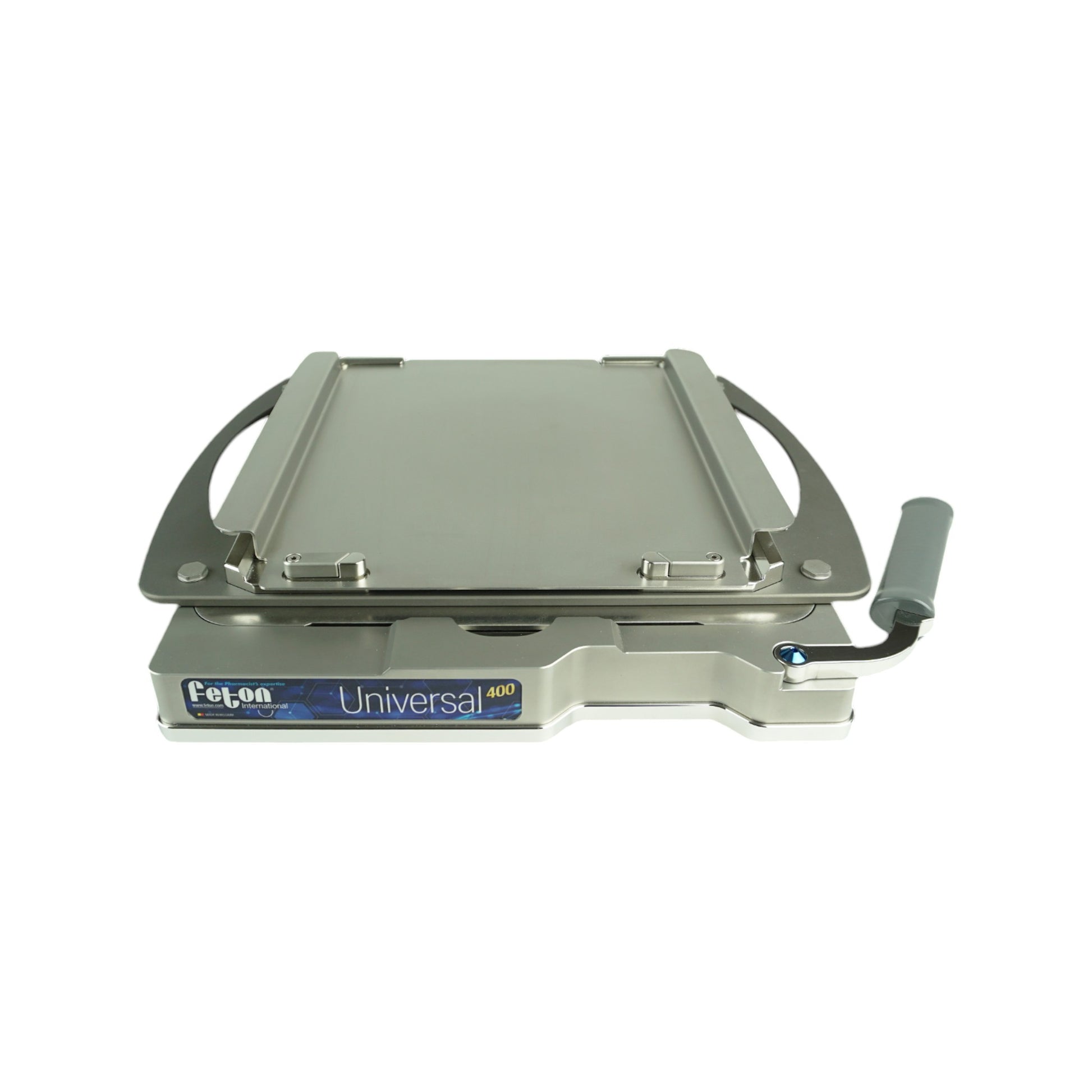

Feton Universal 400 Starter Unit

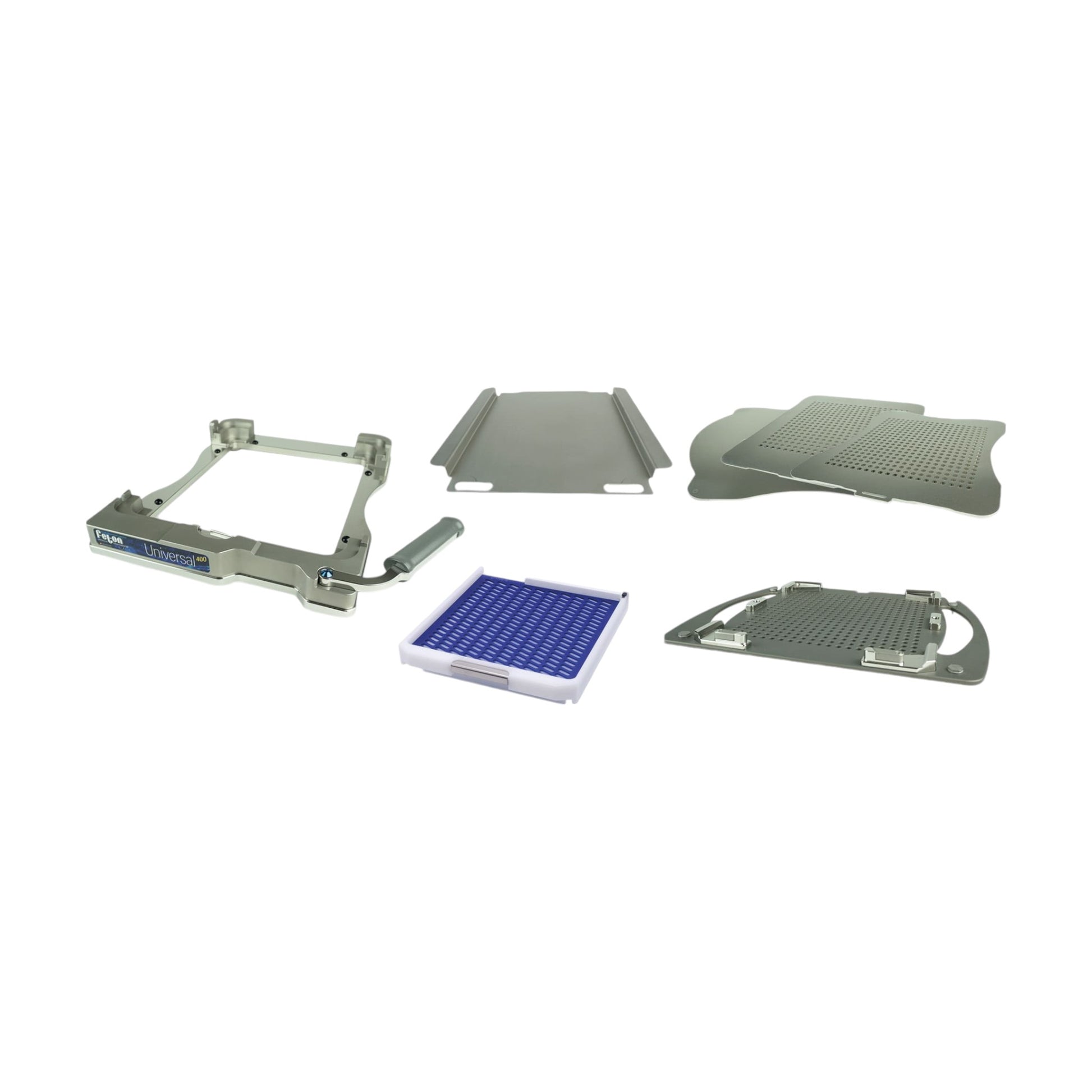

Component(s):

• Universal 400 Filler Frame (1)
• Universal 400 Filler Lid (1)
• Universal 400 Top Plate (1)
• Universal 400 Filling Plate (1)
• Universal 400 Bottom Plate (1)
• Universal 400 Spacer Plate (1)
• Loader 400 (1)

Dimensions and Height:

• Dimensions:
  • Length: 410 - 470 mm
  • Width: 410 mm
  • Height: 90 mm
• Weight
  • From 19 Kg (Size 000) to 20.5 Kg (Size 4)

Features:

• One single frame for all capsule sizes.
• Metallic plates and frame.
• Fill capsule sizes 4, 3, 2, 1, 0, 00 and 000.
• No adjustment necessary.
• 400 capsules at a time.
• Extra space to fill capsules.
• Easy to clean.

Use Instructions:

1.  Prepare your material: choose the right set of plates for the capsule size you are using. Install the plates in this order: 1) Spacer plate, 2) Bottom Plate, 3) Filling Plate, 4) Top Plate.
2. To use the Feton Loader 400, please refer to the Loader datasheet for instructions.
3. Pull the Lever to lock the capsules’ bodies.
4. Pull the Top Plate upwards, starting from the front side for easier separation.
5. Release the Lever. If needed, push on the capsules’ bodies so that they are flush with the Filling Plate.
6. Fill the capsules with your preparation.
7. You can use the Feton Tamper, 400 Pins + Base to push the powder into the capsules to fill a higher volume.
8. Place the Top Plate with the locked lid. Pull up the Base Plate to push the capsules’ bodies into the capsules’ heads. The capsules are now “pre-closed”.
9. Take the Top Plate with the locked lid and turn it upside down on your table. If you have a Feton Serial Closer, use it to close the capsules in one motion. If not, close the capsules by hand.
10. Open the lid and remove the capsules

REF. UN-FRPL400
