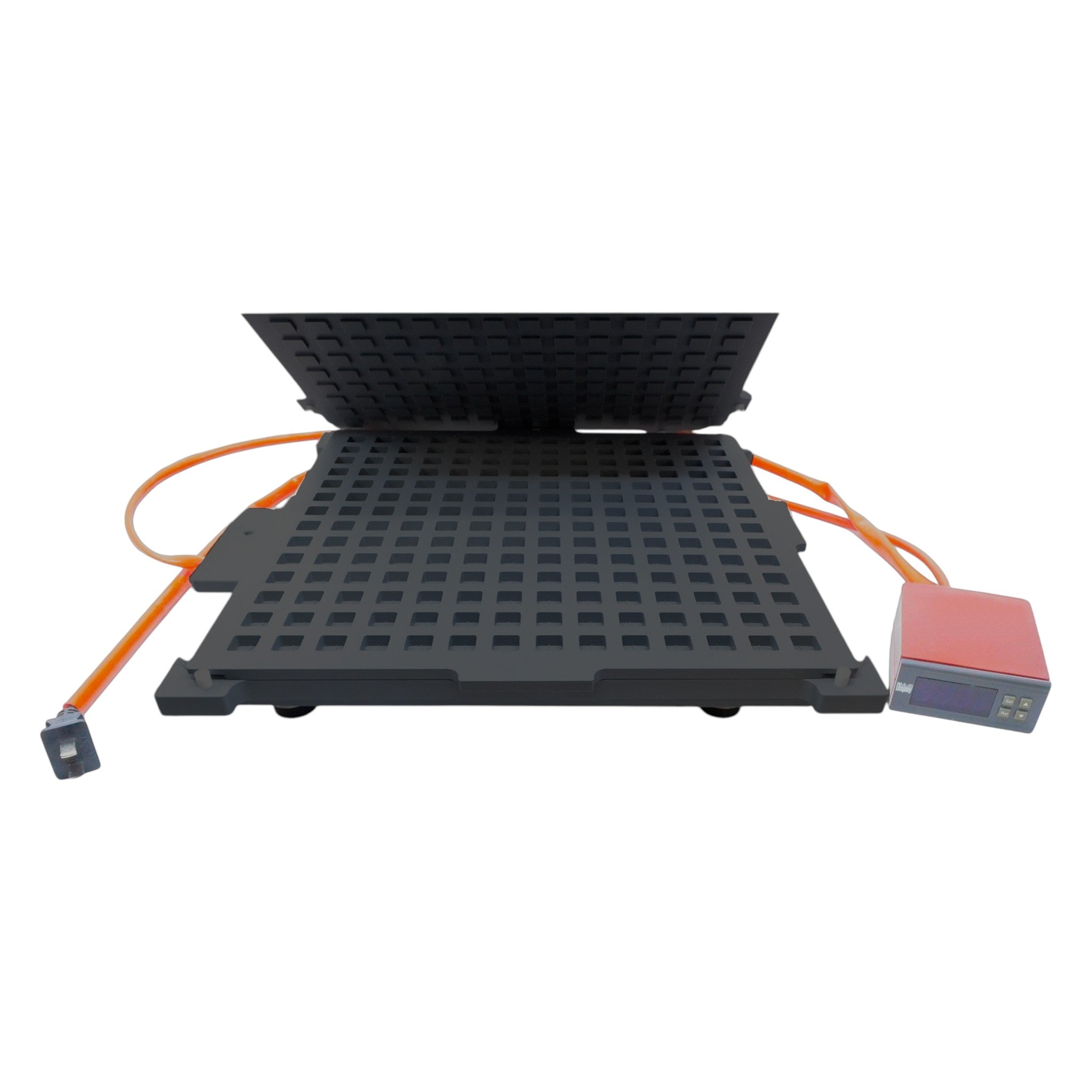

X-TABB™ Rapid Dissolve Tablet & Troche System

$0.00
SKU E0606-00

Call for pricing

Versatile and innovative RDT (Rapid Dissolve Tablet) and troche compounding system enabling high efficiency and regulation compliant prescription compounding.

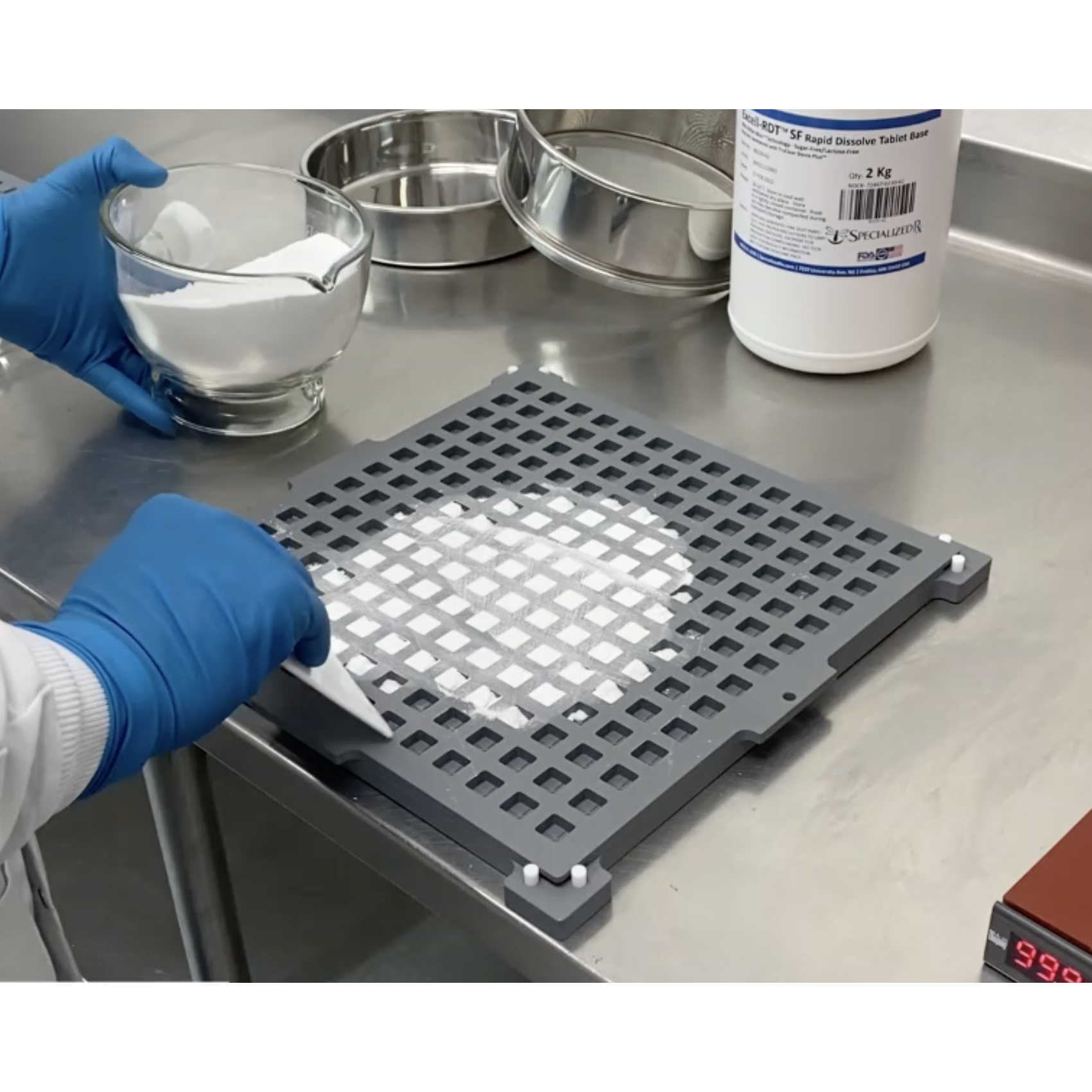

The X-TABB System was developed by SpecializedRx to increase efficiency, control, containment, and compliance (USP <800>) for compounding for oral dose prescriptions.  This system can easily be used under a containment hood while compounding RDTs without the need for use of a convection oven.

Base heating plate constructed of rigid, coated, precision machined aluminum with stainless steel hardware to offer years of trouble-free use. 120V (750W) heating platform with digital controller, standard US 2-prong plug.  International electrical platforms also available upon request.  Operating temperatures from 0 to 260C (500F) with adjustable accuracy to 1.0 and 0.1 degree, timer function and adjustable audible temperature alarm.  Temperature can set to maintain a specific plate temperature and can be configured for either Celsius or Fahrenheit.

Fast and even heating – heats up to 60C in 30 seconds

The X-TABB System is constructed of durable and lightweight aluminum hard coated with the latest US FDA and EU compliant non-stick technology.  Hard coating resists scratches and reasonable wear for years of trouble-free use.  Aluminum is ideal material for conducting heat quickly and evenly as well as fast cooling times allowing the compounder to quickly and efficiently increase cycle times between compounding events.

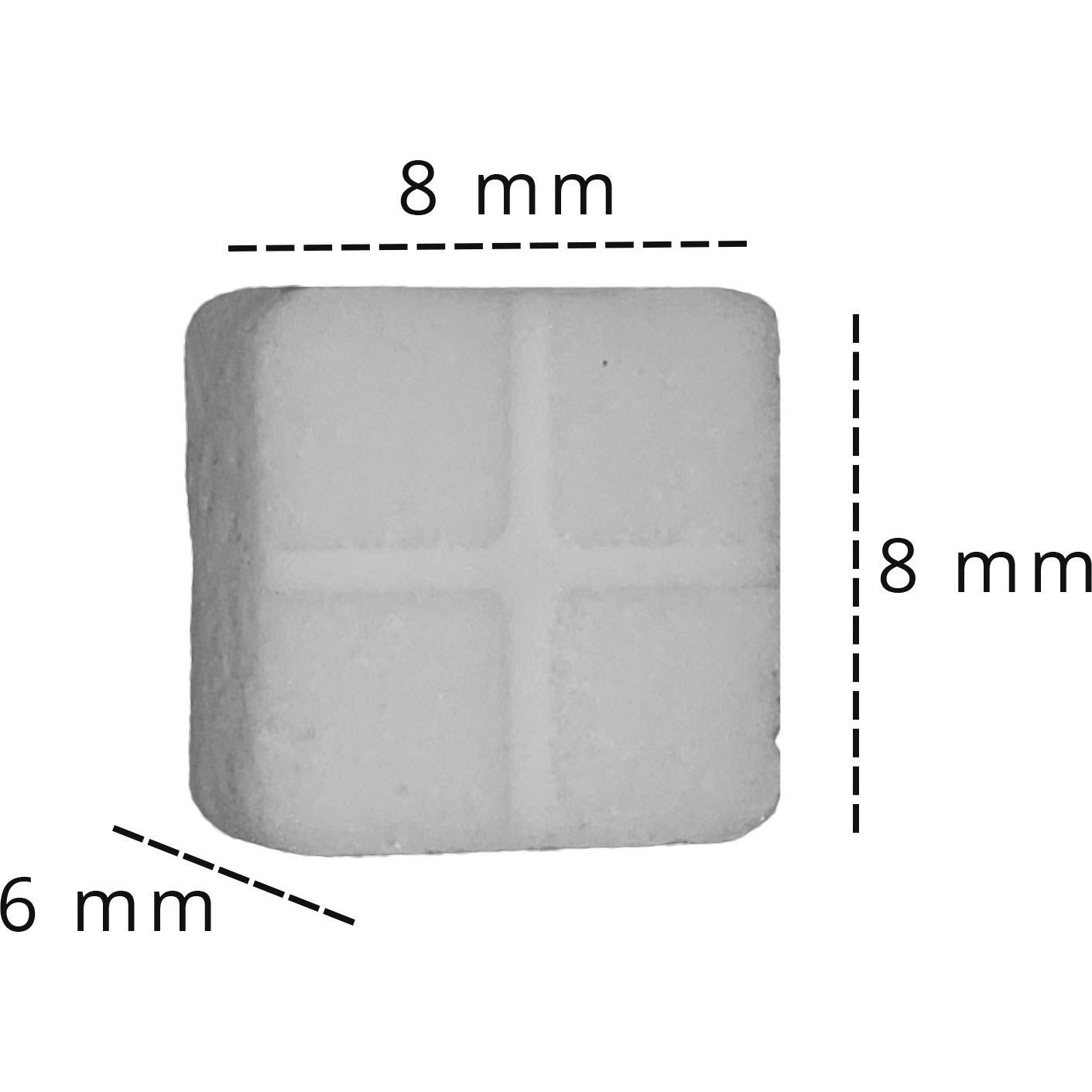

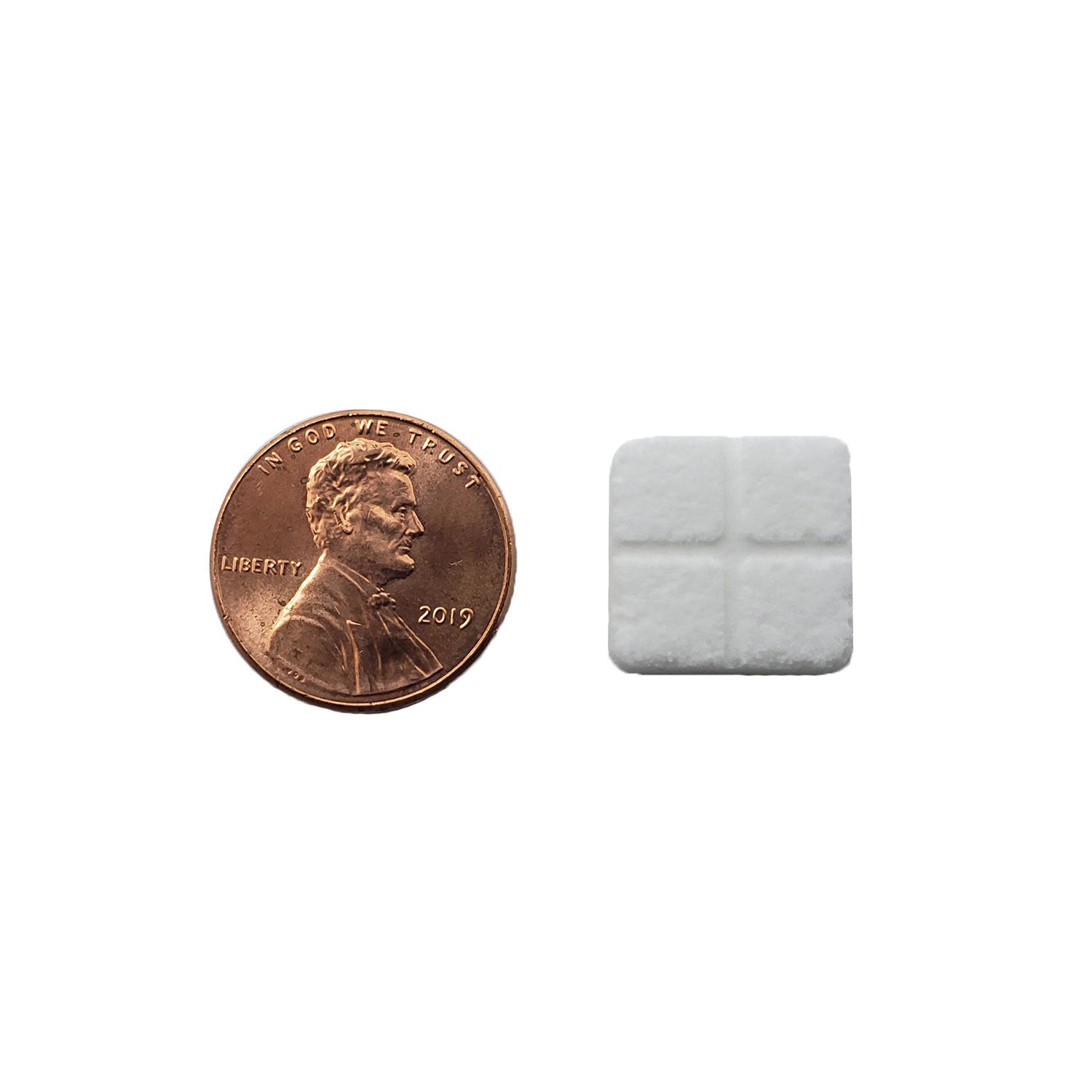

Mold Calibrations Per Dose (Quarter-Score Dose size: 6mm x 8mm x 8mm: HxWxL)

  • SRx Excell RDT SF (per SRx RDT General Procedure): 0.757g
  • SRx Techna 20 SF: 1.382g
  • SRx Techna 10 SF: 1.409g
  • SRx Techna Natural SF: 1.151g

SpecializedRx developed compounding innovation.  Patent Pending.  Made in USA.

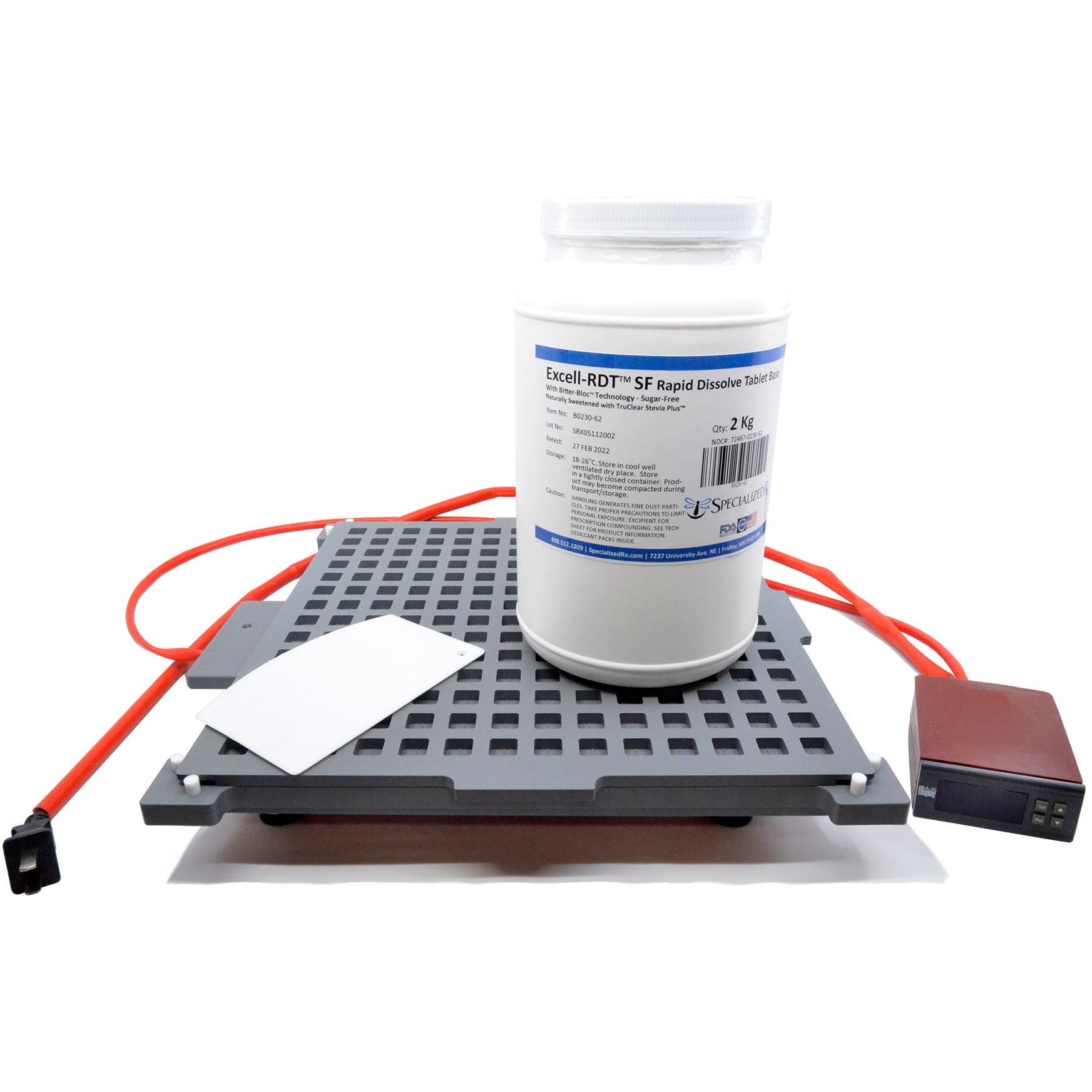

System Includes:

  • Base Heating Plate w/Digital Controller #E0612-00
  • Quarter Score Plate #E0609-00
  • 196 Dose 1ml R1 Cavity Plate W/Out Overflow #E0608-00
  • Tamper Plate #E0610-00
  • Scraper Spatula #E0569-00

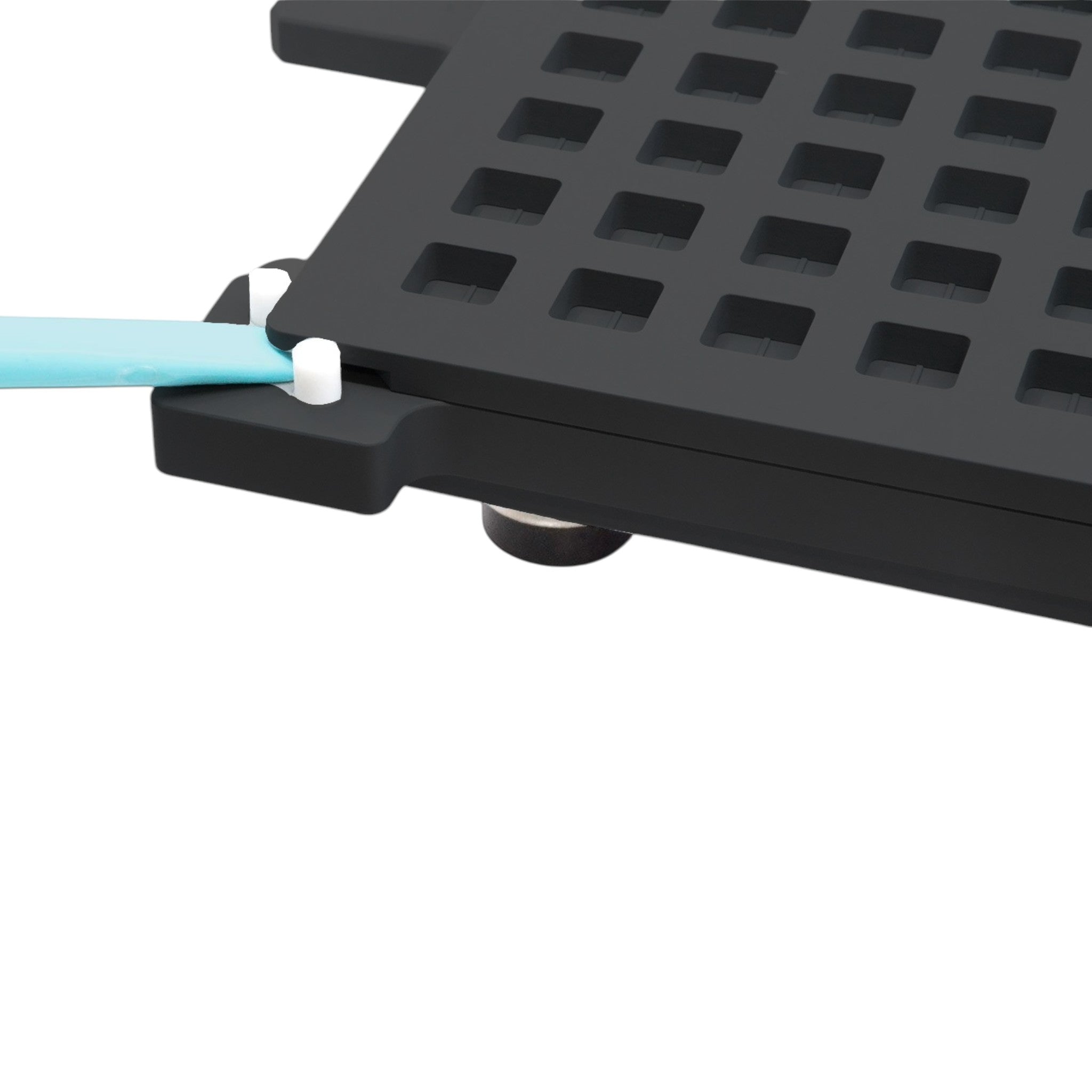

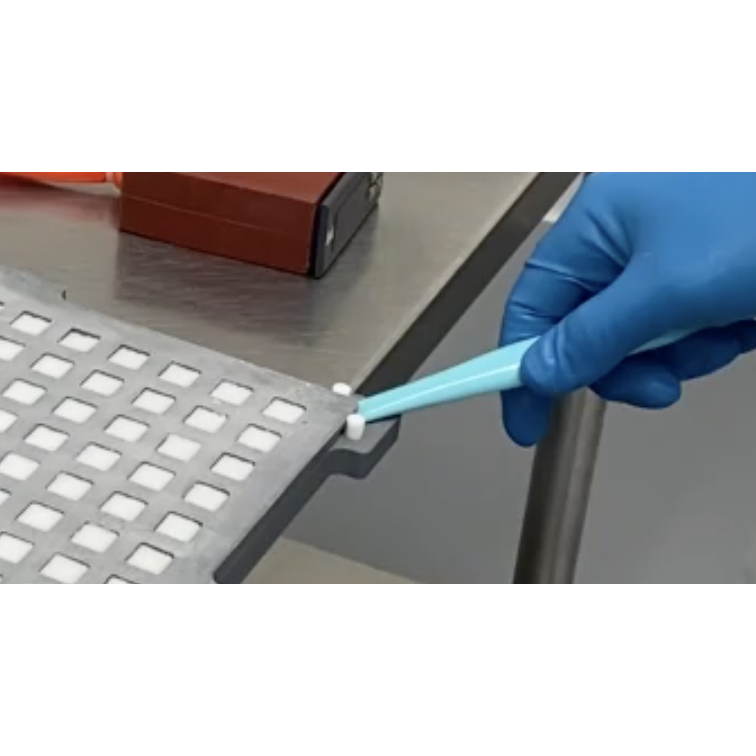

  • Scraper/Pry Tool #E0574-00

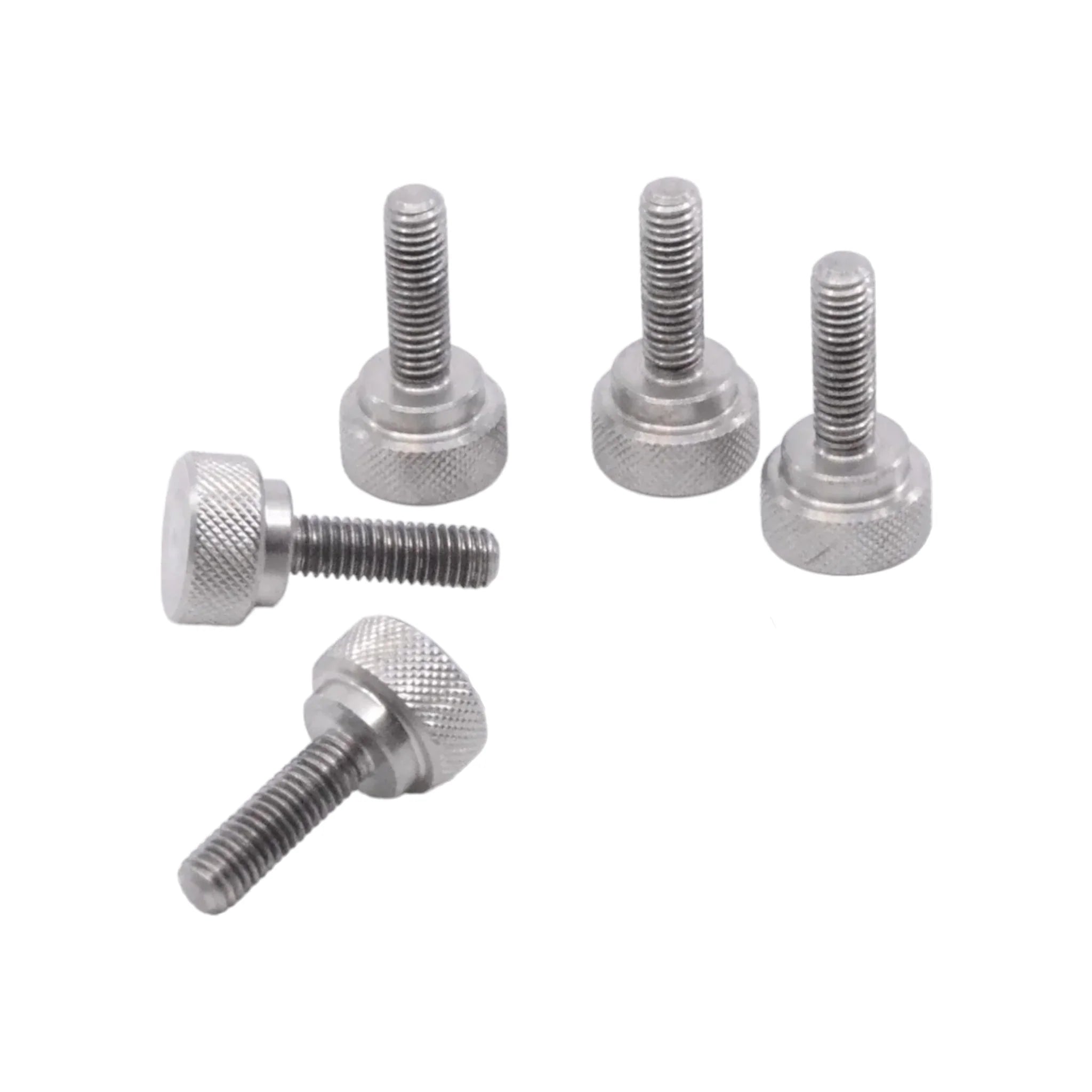

  • Stainless Steel Thumb Screws (5/pk) #E0614-00
  • Instruction Manual
  • 1 year limited warranty on digital controller

Base Heating Plate:

Base heating plate constructed of rigid, coated, precision machined aluminum and stainless steel hardware to offer years of trouble-free use.  120V (max load 750W) silicone heating pad with digital controller, standard US 2-prong plug, temperature rating up to 260C adjustable to1.0 or 0.1 degree, timer function and adjustable audible temperature alarm.  Temperature can be configured for either Celsius or Fahrenheit.

4 base leveling feet included.

Digital Thermostatic Controlled Heater:

  • Fast and even heating – heats up to 60C in 30 seconds
  • Programmable with manual included
  • 120V (750W)
  • Celsius or Fahrenheit display options
  • Option to control temperature accuracy between 1.0 and 0.1 degrees
  • Programmable heat timing function
  • Max operating temperature up to 260˚C (500˚F).
  • 2-prong US type plug / Cord length: 1 meter

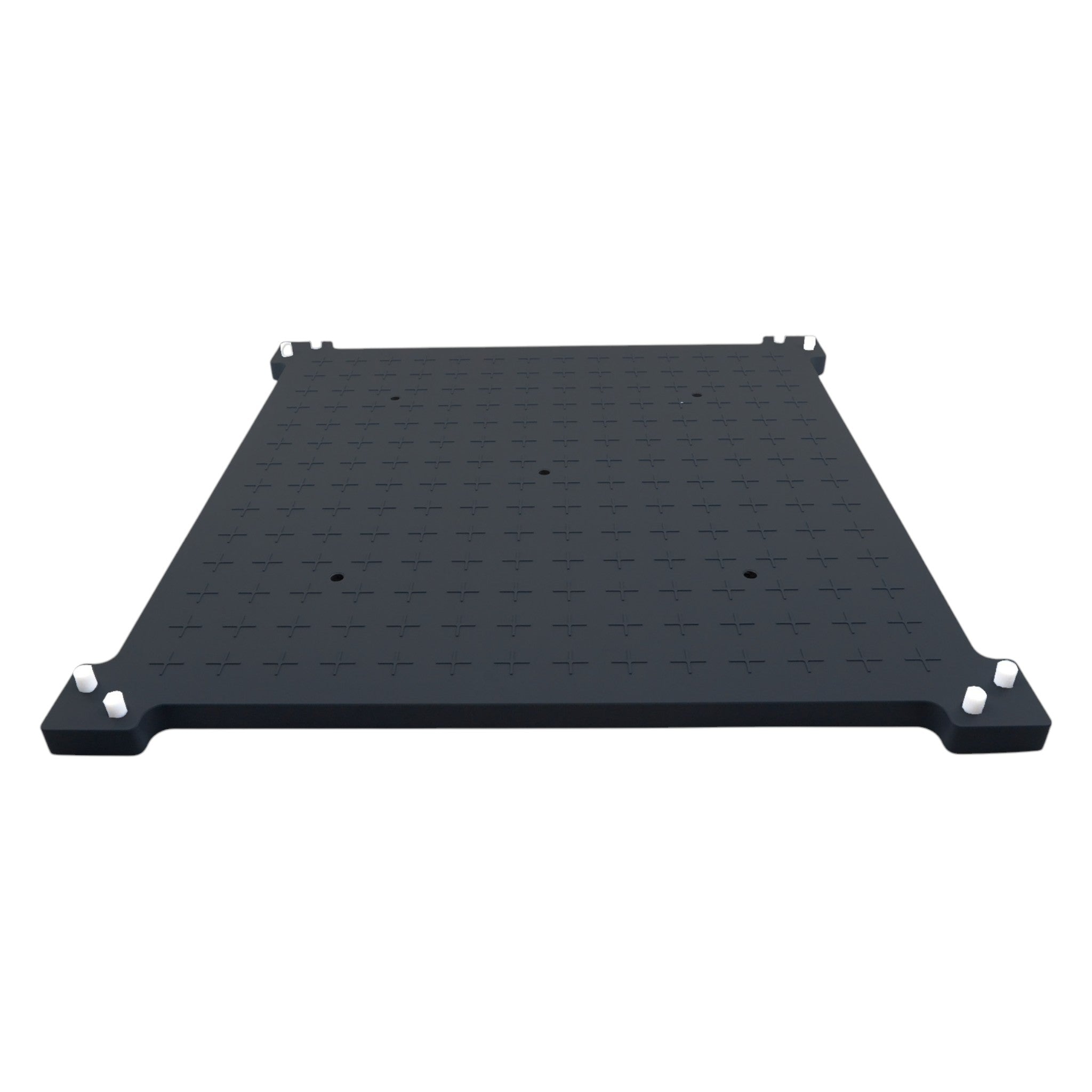

Quarter Score Plate:

196 dose high-output score plate constructed of durable and lightweight aluminum hard coated with the latest US FDA and EU compliant non-stick technology.  Hard coating resists scratches and reasonable wear for years of trouble-free use.

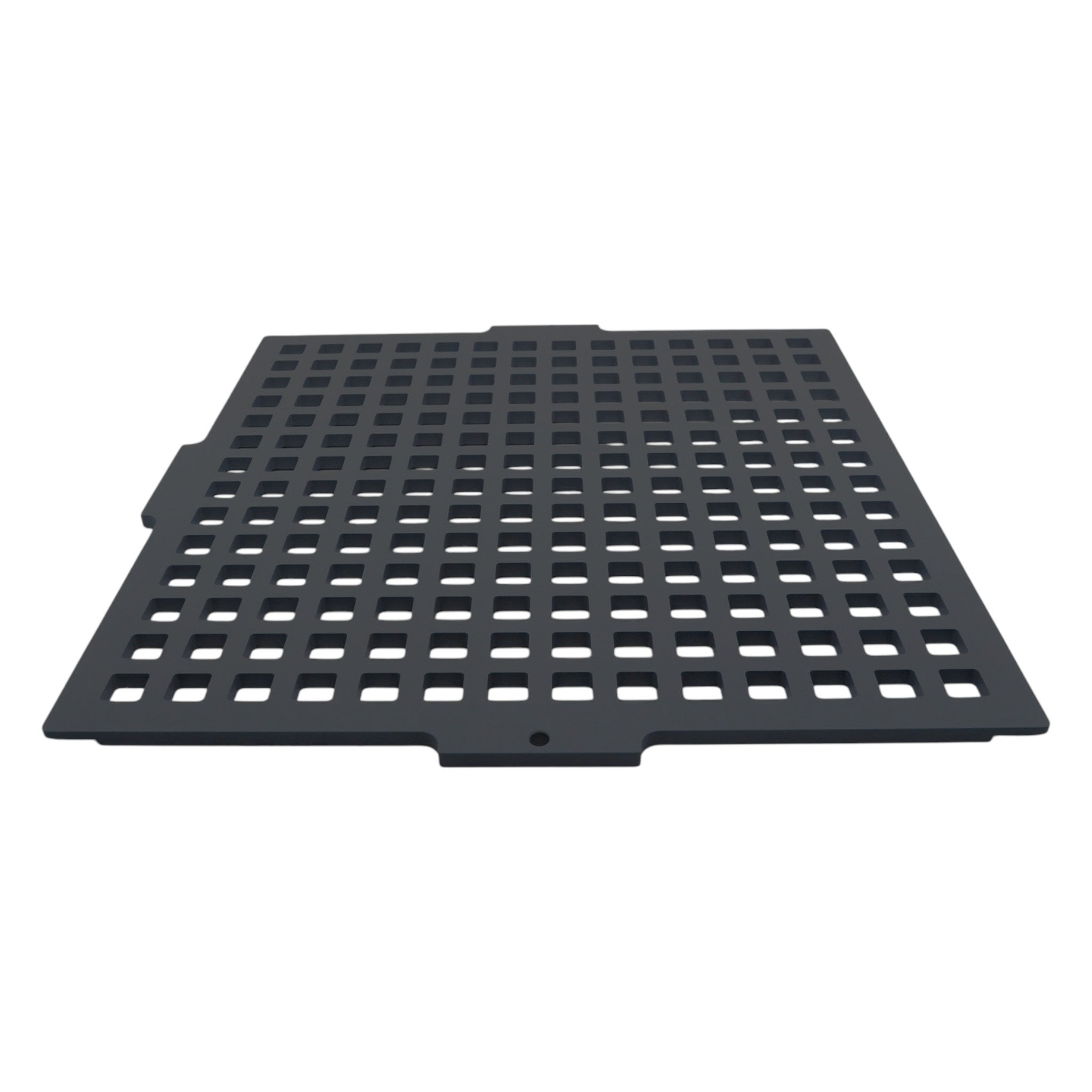

Cavity Plate:

196 dose 1 ml high-output cavity plate constructed of durable and lightweight aluminum hard coated with the latest US FDA and EU compliant non-stick technology.  Hard coating resists scratches and reasonable wear for years of trouble-free use.  1.148ml cavity plate, cavity dimensions: 0.25” H x 0.50” W/L

Compounding Troches:

Optional Accessories:

E0607-00 X-TABB™ - 1ml Cavity Plate W/Overflow (convenient for troche compounding)

E0603-02 X-TABB Blister Pack and Sleeve (25pk) Troche / RDT

E0575-00 Sieve 8-inch 20 mesh, Stainless Steel

E0576-00 Sieve Receiver Pan 8-inch, Stainless Steel

E0577-09 Hot Hand Protector, Silicone, 1 Pair

E0569-00 Flexible Scraper Spatula

E0574-00 Rigid Plastic Scraper/Pry Tool

Also See:

B0230 Excell SF RDT (Rapid Dissolve Tablet) Base

F0145 Wild Cherry Natural Powder Flavor (RDT)

F0144 Lemon-Lime Natural Powder Flavor (RDT)

F0155 Fuji Apple Natural Powder Flavor (RDT)

F0108 Bitter-Bloc Pure Powder
